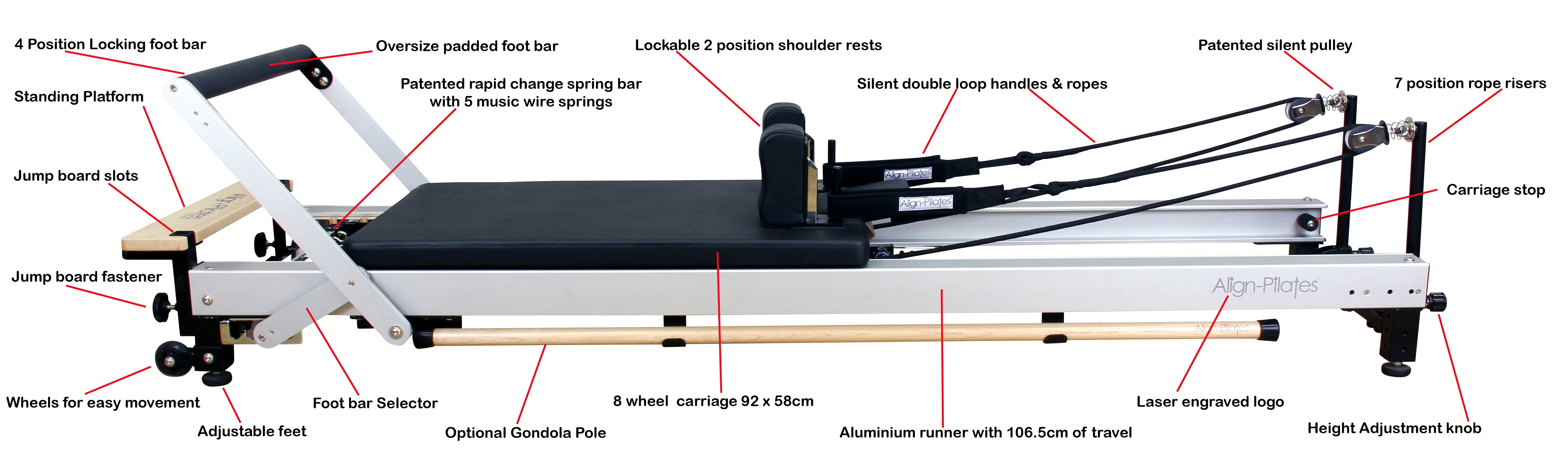

Align Pilates C8-Pro Reformer

• Patent-pending rapid change spring bar for the fastest spring bar changes available, using one hand and a single action
• Class-leading travel - 106.5cm, up from 100.5cm on previous models C1 models
• Large & comfortable carriage 92cm x 58cm
• Oversized foot bar & lowered pivot point for extra solid feel
• Resistance:5 nickel plated quality music wire springs in 3 different strengths (2 light, 2 medium and 1 strong)
• Choice of heights, either standard 26cm height or 44cm with optional leg extensions
• Lockable foot bar positions with 4 positions including flat
• Removable rope risers with 7 height positions (if extension legs are used)
• Rapid rope length adjustment system that adjusts both ropes simultaneously, with 7 rope length variations
• Height adjustable feet for perfect alignment
• Align-Pilates ‘Silent’ system with metal-free double loop handles, ropes & foot strap and now patented silent pulleys for a super quiet user experience
• Improved 3 position headrest
• Removable & lockable shoulder rests with new off-centered shoulder pads to give a choice of two different widths
• Space-saving – The C8-Pro can be wheeled for ease of movement and storage and can be stacked and it can “free stand” when selected with either the optional free standing feet or the extension leg option.*
• Improved anodized aluminium runners with a 8 PU wheel carriage for super quiet and maintenance free ride
• New Gondola pole storage hooks underneath the runner for convenient access & a tidier studio! Note; Maple Poles are sold separately
• ISO20957-1 Class S Item. Max User Weight:150kg. Suitable for users:145cm - 193cm (4’10” - 6’4”)

Optional Extras

The Align-Pilates C8-Pro reformer is compatible with the following accessories

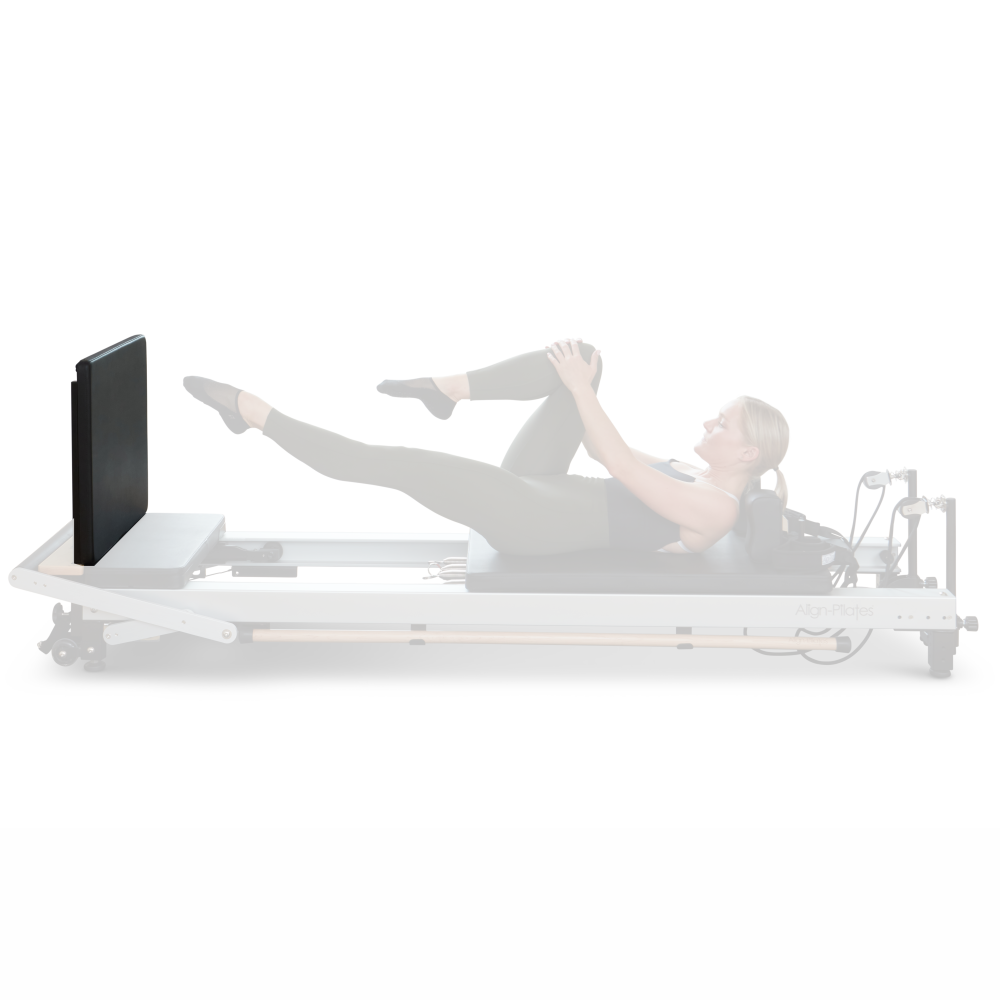

• Jump Board for C* series reformers
• Leg Extensions (to raise the bed height to 42cm)
• Freestanding feet (to allow freestanding of the reformer)

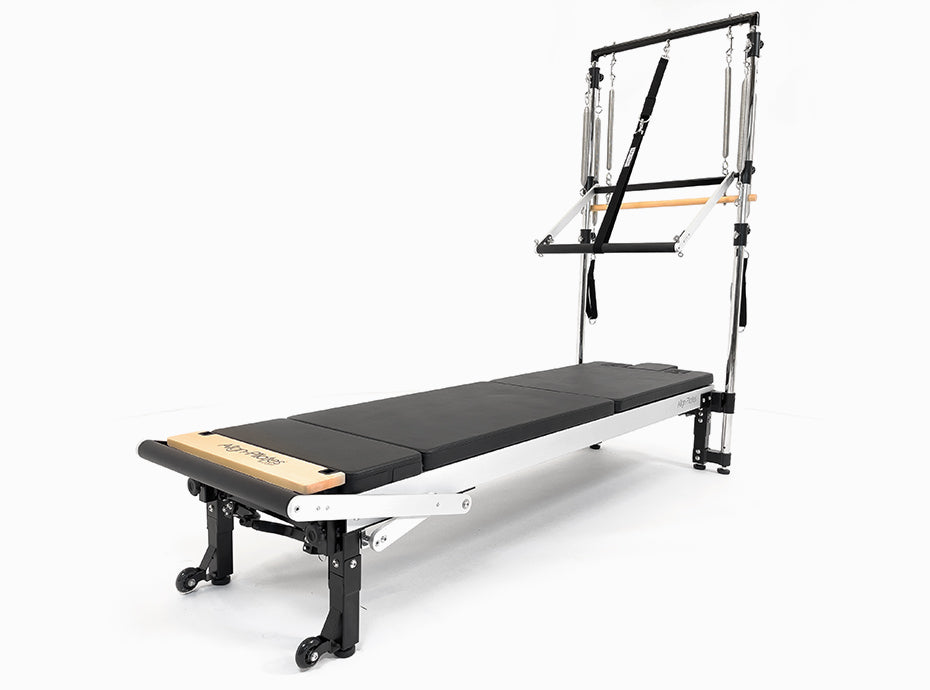

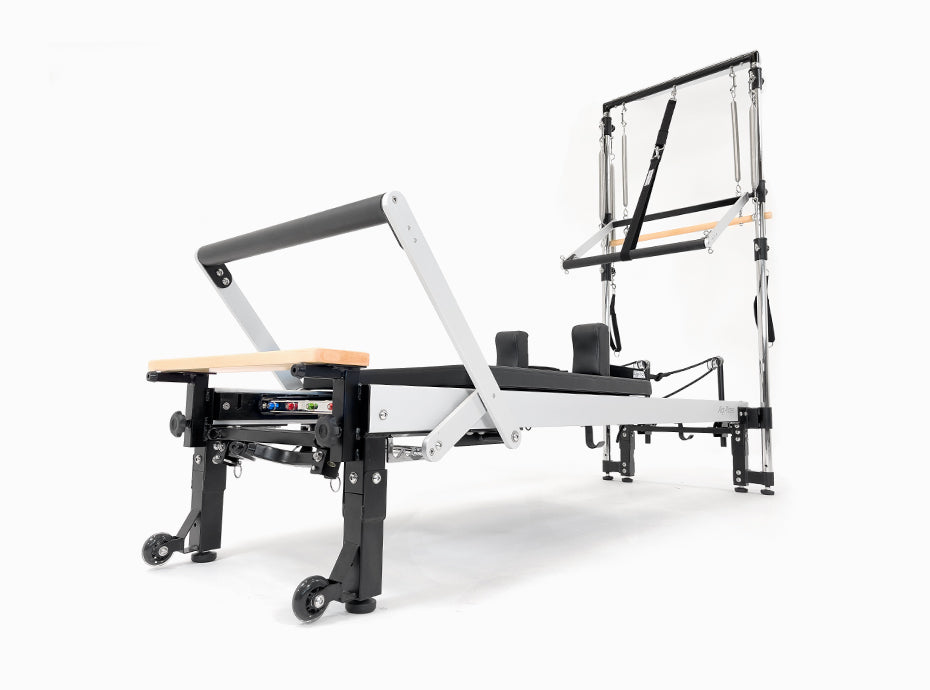

• Half Cadillac frame  (bracket required)

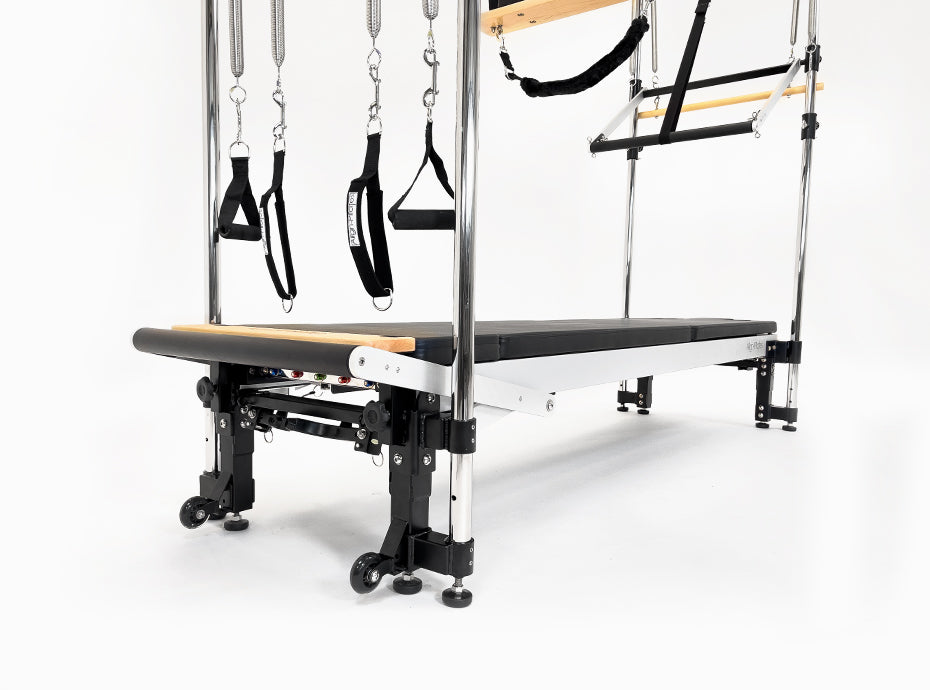

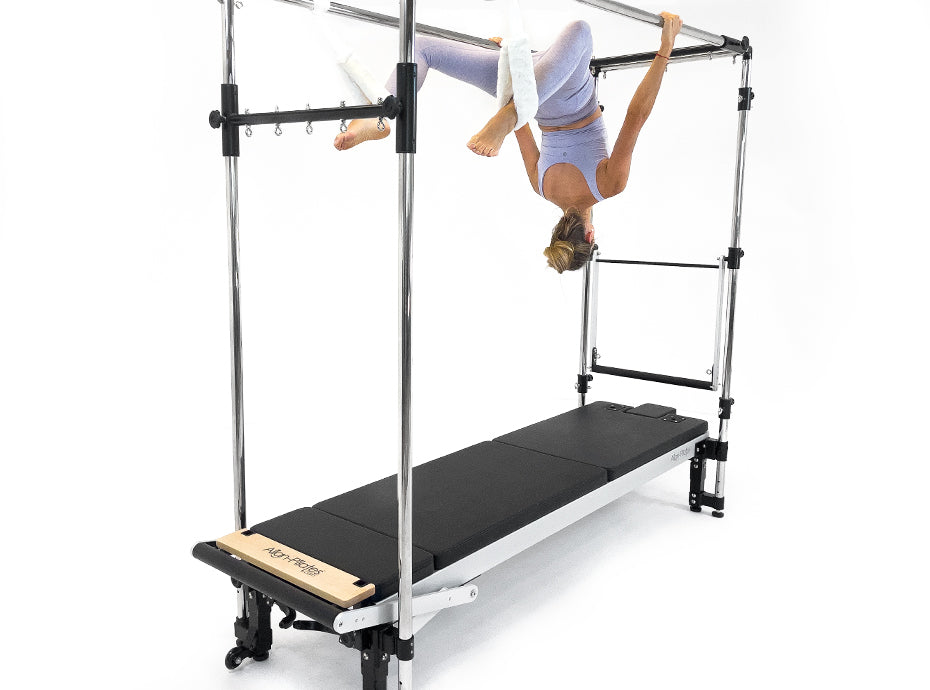

• Full Cadillac frame (brackets required)

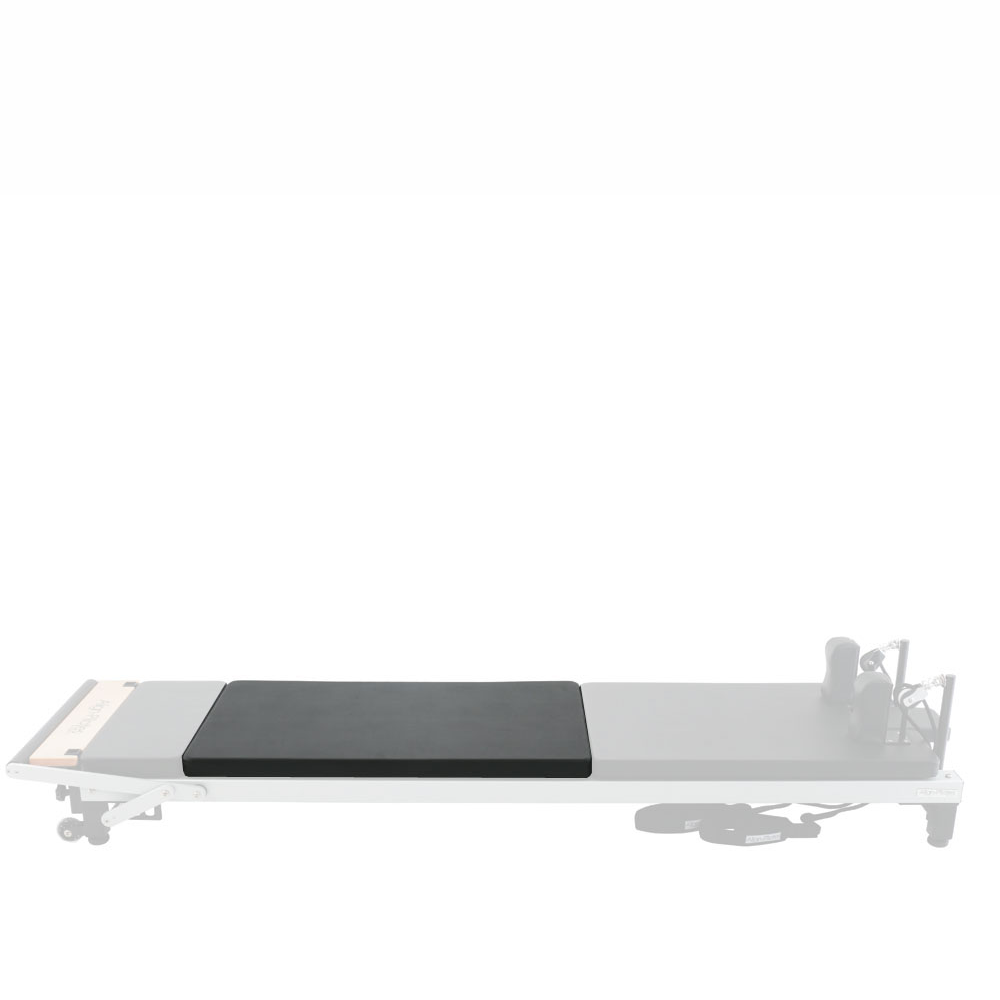

• Mattress insert for C Series reformers
• Platform extender for C series Reformers
• Pro Rope Adjusters (for enhanced rope adjustment)
• Frame Sitting Box
• Sitting Box
• Neck Pillow

Differences Between The C8 Pro Reformer And The C2-Pro RC Pilates Reformer

• 8 roller blade style PU wheels for quieter ride, lower maintenance & superior cross load performance
• Over sized foot bar with lowered pivot point for a super solid feel
• 2cm higher off the ground in standard configuration for improved comfort

Compatibility With Other C Series Reformers

The C8 Pro is compatible with the accessories from all the earlier C Series accessories e.g. the mattress insert, standing platform, leg extensions, half and full Cadillac frames. This makes using C8 Pro  in the same studio as other C series reformers a breeze and levers on any earlier investments in the series. Furthermore, for those already invested in earlier C Series machines, there is a very high percentage of backward compatibility for spare parts, as this is one of the cornerstones of Align-Pilates’ design principles.

- Class leading travel:now 106.5cm up from 100.5cm on previous models

- Long carriage now increased to 92cm up from 86cm on previous models

- Resistance:5 nickel plated quality music wire springs 3 different strengths (2 light, 2 medium and 1 strong)

- Lockable foot bar positions with 4 positions including flat

- Removable rope risers with 7 height positions (if extension legs are used)

- Rapid rope length adjustment system that adjusts both ropes simulataneously, with 7 rope length variations

- Height adjustable feet for perfect alignment

- Align-Pilates ‘Silent’ system with metal free double loop handles, ropes & foot strap and now patented silent pulleys for a super quiet user experience

- 3 position head rest

- Space saving – The C2-Pro is wheeled for ease of movement and storage and can be stacked or stood against a wall. It can “free stand” when selected with the extension leg option

- Improved anodized aluminium runners with new self-centering carriage for smooth

- New self-lubricating German engineered plastic wheels for a smoother quieter ride and dramatically reduced maintenance

- ISO20957-1 Class S Item. Max User Weight:150kg. Suitable for users:145cm – 193cm (4’10” – 6’4”)

Equipment Testing

Passed Cycle Testing to European ISO Standard 20957 Class S – a requirement for all commercially used Stationary Training Equipment used in Europe :

Testing ISO 20957 Class S Cycle Tested for maximum user weight of 150Kg

ISO Test spec – Pull the carriage using the reformer ropes for 80% of maximum travel distance – performing the motion smoothly with no shocks with:

All springs attached

• Carriage loaded with max user weight limit of 150Kg
• Rope pulleys set in the highest position on the Rope riser for maximum leverage
• Test standard for class S (commercial use) is 100,000 cycles.
• The CX1000 PRO test was conducted in May 2016 for over 106,000 cycles. The reformer was fully operational at the end of the testing.

10 YEAR LIMITED LIFETIME WARRANTY.

Terms of Limited Lifetime Warranty Pilates Reformer NZ offers the following limited lifetime warranty, for the periods as stated below from the date of purchase, to the original owner of their products, upon presentation of an original invoice in their name.

The warranty covers commercial and domestic usage.The M2/M8 is warranted for commercial or professional use. Pilates Reformer NZ will repair or replace any mechanical part that malfunctions due to defects in materials and/or workmanship during the warranty period.

The warranty excludes normal wear and tear, damage due to negligence or misuse, abuse, modification or unauthorized repair; scratches to the finish, and tears or indents in the upholstery. Pilates Reformer NZ will, at its discretion, repair or replace any parts deemed defective during the warranty period. If we opt to repair or replace your apparatus, this may require that your product is returned for inspection at our premises prior to sending out replacement apparatus. Parts repaired or replaced under the terms of this warranty will be warranted for the remainder of the original warranty period only.

This warranty does not cover shipping charges, customs clearance fees (where applicable) or any costs incurred in installing repaired or replacement parts shipped under the provisions of this warranty.This warranty will be null & void if springs are not changed as specified or, if all safety, maintenance and usage instructions as specified in the manuals are not observed or, if the equipment is used for any other purpose other than for Pilates repertoire or if the equipment has been subjected to accident, abuse, improper service, or modification not authorised by Pilates Reformer NZ.

1) The M2/M8 reformer carries a 10 year warranty for the main steel frame and Maple Frame standing platform and the following warranty on other parts

a) Springs 2 year / 3,000 hours warranty is given on all springs, excepting that a decrease of 5% of the spring power per 1,500 hours usage is acceptable according to international standards. Align-Pilates Springs should be replaced after a maximum of 3,000 hours use or 2 years, whichever is earlier. In the event of any signs of damage or wear springs should be replaced immediately regardless of age or usage.

b) All other parts including wear and tear parts including wheels, straps, ropes: 1 yearc) Upholstery - The upholstery fabric on Align-Pilates equipment will be replaced if it fails to give normal wear for 125 days from the date of delivery. (If using 2xl Gym Wipes we extend this period to 1 year) Proof of damage may be required. This warranty does not cover cuts, scratches, burns, stains, soiling, or damages caused by unreasonable use such as wearing jewellery or inappropriate clothing whilst using the equipment.

Align-Pilates reserves the right to substitute an equivalent fabric if an identical fabric is not available. Upholstery must be properly cared for as laid out in the manual.

Warranty Return Procedure:The customer must call Pilates Reformer NZ or its authorized Distributor for authorization prior to returning the equipment. The customer is responsible for the cost of returning products to Pilates Reformer NZ (or their appointed Distributor) for warranty adjustment should this be deemed necessary. The customer is responsible for any damage or loss during shipment back to Align-Pilates (or their appointed Distributor).

The customer is responsible for the cost of return freight to them in the event Pilates Reformer NZ decline to make a warranty adjustment. Align-Pilates do not accept responsibility for any items returned without a pre-approved authorization number, which must be clearly marked on the outside of the package.

Limitation of Liability: The above is our exclusive warranty and is in lieu of all other warranties, express or implied, including warranties of merchantability or fitness for any purpose. In no event shall Pilates Reformer NZ or their Distributors be liable for incidental, consequential or punitive damages.

• Reformer only - 239.5 (L) x 66 (W) x 26cm (H)
• Reformer with Leg Extensions - 239.5 x 66 x 44cm
• Standing height for storage - 240cm
• Weight - 59kg (GW)
